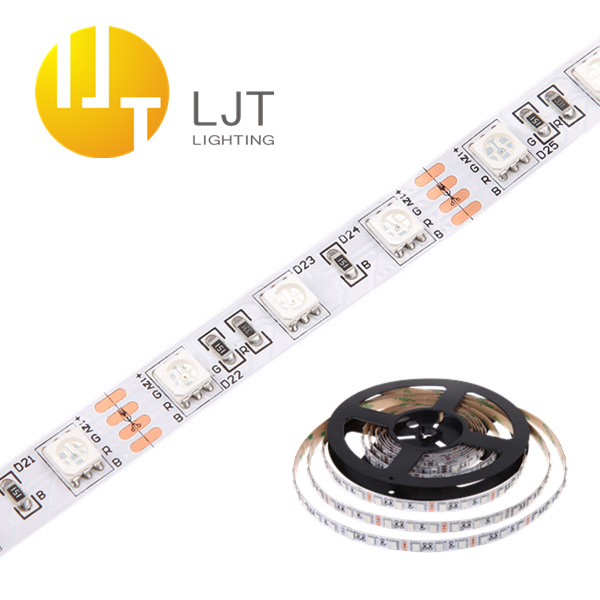

LSH30F- RGB
LED 5050 STRIPS
Features:
Super bright SMD5050 as the light source, high brightness, wide beaming angle with good consistant aperture and no shadow.Low power consumption. It’s 72W.
Use double –side imported rolled copper FPC, good folding endurance disconnected;
Low voltage DC12V, constant voltage drive;
Long life time is up to 50000 hours;
Applications:
l Advertising Industry: slim light box, backlight of illuminated letters and outline of illuminated signs;
l Decoration Industry: light decoration for all types of shops, super markets, furniture, etc;
l Back lighting: back lighting and ideal atmosphere creating for leisure and entertainment places
| Basic Parameter | |||||||
| LED Type | 5050SMD | Color | R /Y /G/B/WW/W/ | ||||
| LED Qty | 700pcs | Dimension | 1000*10*2.2mm | ||||
| IP grade | IP41 | Viewing Angle (θ) | 120±5° | ||||
| Weight | 15g～17g | Lifespan | MTBF＞50000hours | ||||
| Environment Parameter | |||||||
| Working Temperature | -20℃～+50℃ | Storage Temperature | -30℃～+60℃ | ||||
| Electronic Specification | |||||||
| Working Voltage | DC12V | Working Wattage | 14.4W | Driving Method | Constant Voltage | ||
| Wires & series connection length | |||||||
| Wires | 1007 | ||||||
| Standard length in serial connection | 5m | ||||||
| Maximum length in serial connection | 5m | ||||||
| Luminous Flux (lm) | |||||||
| R | Y | G | B | WW | W | ||
| 300-360 | 300-360 | 540-660 | 120-150 | 1080-1200 | 1080-1200 | ||
| Wave Length/ Color Temperature (nm/k) | |||||||
| R | Y | G | B | WW | W | ||
| 620~630 | 587~593 | 515~525 | 465~475 | 2800~3200 | 5500~6500 | ||
