LMI261F

LED 2835 MODULE SERIES



Application

1.Advertisement signs backlighting

2.LOGO & Letters backlighting

3.Advertisement Light boxes and billboards backlighting

4.Landscape, commercial, home and stage decoration

Product Feature

1.High luminous flux 20 times more than 3528 LEDs.

2.2835 0.2W LED source with heat sink, well heat transferring.

3.Constant current driver ensuring full bunch in same brightness and stably working.

4.Al substrate for LED and components in a low temperature condition.

5.20degree visual angle resulting be tter ,average brightness and no brighter dots.

6.Best sealed, IP65 with moisture-proof, water-proof,dust proof and impact resistance.

7.Nice structure and design in PC process. Whole unit has been formed in one-time injection molding.

8.RoHS standard of all raw materials.

9.Long lifespan and low failure rate.

Product Parameter

No.

Item

Parameter

1

Module Size

L26*W10*H4.2mm

2

LED

1 pcs 2835 SMD LED

3

Drive type

Constant current drive

4

Input voltage

DC12V

5

Beam angle

120 degree

6

Power(single module)

0.36W

7

Luminous Flux

40lm

8

Color Rendering Index

80

9

Color Temperature

2800-24000K

10

Emitting Color

Warm white/Pure white/Cool white

11

Structure & material

Aluminum PCB. PVC cover

12

Max Connection Qty(PCS)

20(typ)

13

IP Level

IP65

14

Working temperature

-20~+45°C

15

Stock temperature

-30~+60°C

16

Warranty

2years






































Product Sketch






Light Attenuation Graph

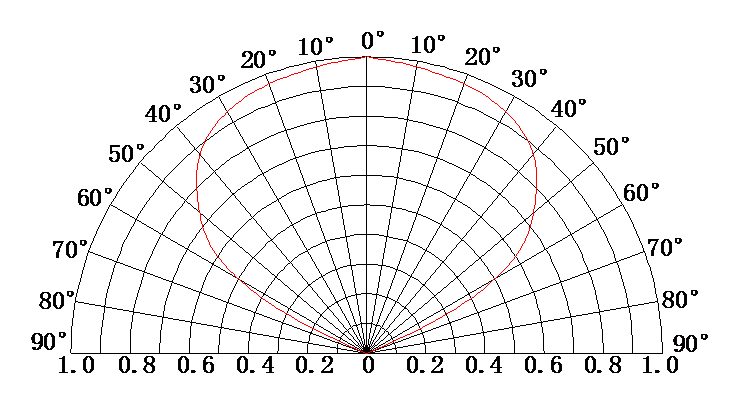

Light Distribution Curve


Packaging & Shipping


1.Carton size: 360mm*240mm*290mm,each bunch of modules 20pcs, 5bunches in 1 foil bag, 1 bag /100pcs

2.15 bags / carton    TTL:1500pcs / carton

3.Weight: 16 Kg

4.The above-mentioned data only for reference and need to be adjusted according to the actual situation.

Our Services

1.Reply your inquiry in 24 working hours.

2.Costomized design is available,OEM and ODM are welcomed.

3.Delivery the goods to our customer all over the world with speed and precision.

4.Offer customer the lowest price with high quality LED light.

CE and RoHS
