Application

1.Advertisement signs backlighting

2.LOGO & Letters backlighting

3.Advertisement Light boxes and billboards backlighting

4.Landscape, commercial, home and stage decoration

Product Feature

1.High luminous flux 20 times more than 3528 LEDs.

2.5050 1.5W LED source with heat sink, well heat transferring.

3.High light transmittance PMMA lens.

4.Constant current driver ensuring full bunch in same brightness and stably working.

5.Al substrate for LED and components in a low temperature condition.

6.Secondary optic design, 160degree visual angle resulting be tter ,average brightness and no brighter dots.

7.Best sealed, IP65 with moisture-proof, water-proof,dust proof and impact resistance.

8.Nice structure and design in PC process. Whole unit has been formed in one-time injection molding.

9.RoHS standard of all raw materials.

10.Long lifespan and low failure rate.

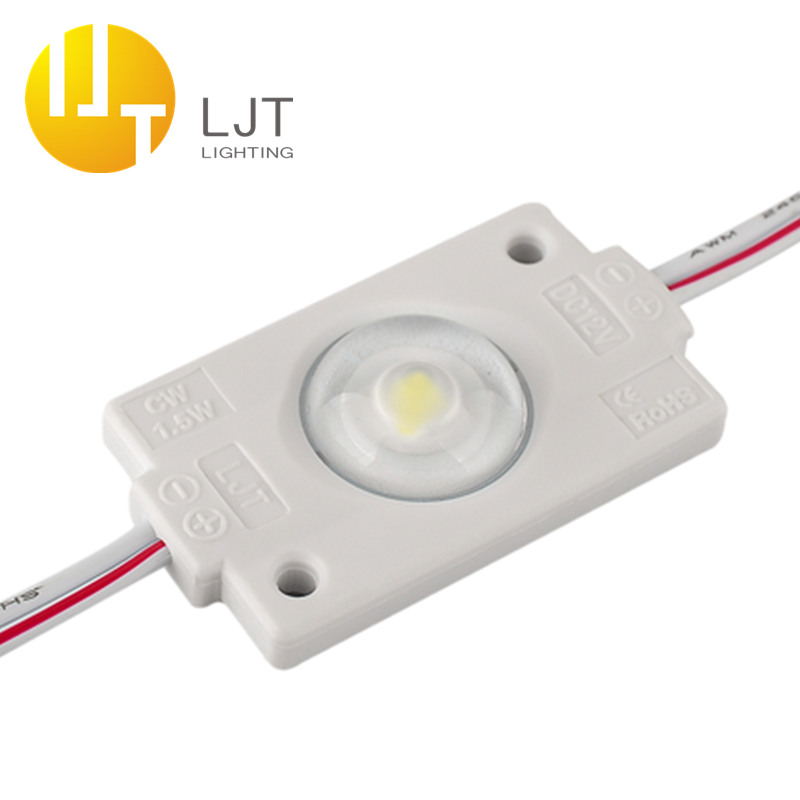

Product Parameter

No.	Item	Parameter
1	Module Size	L43*W25*H8.6mm
2	LED	1 pcs 5050 SMD LED
3	Drive type	Constant current drive
4	Input voltage	DC12V
5	Beam angle	160 degree
6	Power(single module)	1.5W
7	Luminous Flux	120lm
8	Color Rendering Index	80
9	Color Temperature	2800-24000K
10	Emitting Color	Warm white/Pure white/Cool white
11	Structure & material	Aluminum PCB. PVC cover
12	Max Connection Qty(PCS)	20(typ)
13	IP Level	IP65
14	Working temperature	-20~+45°C
15	Stock temperature	-30~+60°C
16	Warranty	3years











































Light Attenuation Graph

Light Distribution Curve

Product Sketch

Packaging & Shipping

1.Carton size: 360mm*240mm*290mm,each bunch of modules 20pcs, 5bunches in 1 foil bag, 1 bag /100pcs

2.10 bags / carton    TTL:1000pcs / carton

3.Weight: 15 Kg

4.The above-mentioned data only for reference and need to be adjusted according to the actual situation.

Our Services

1.Reply your inquiry in 24 working hours.

2.Costomized design is available,OEM and ODM are welcomed.

3.Delivery the goods to our customer all over the world with speed and precision.

4.Offer customer the lowest price with high quality LED light.

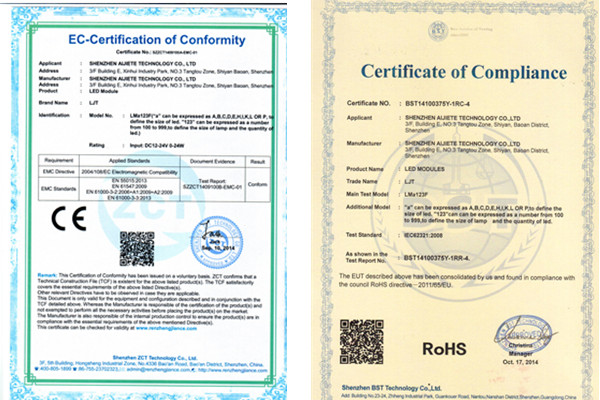

CE and RoHS
